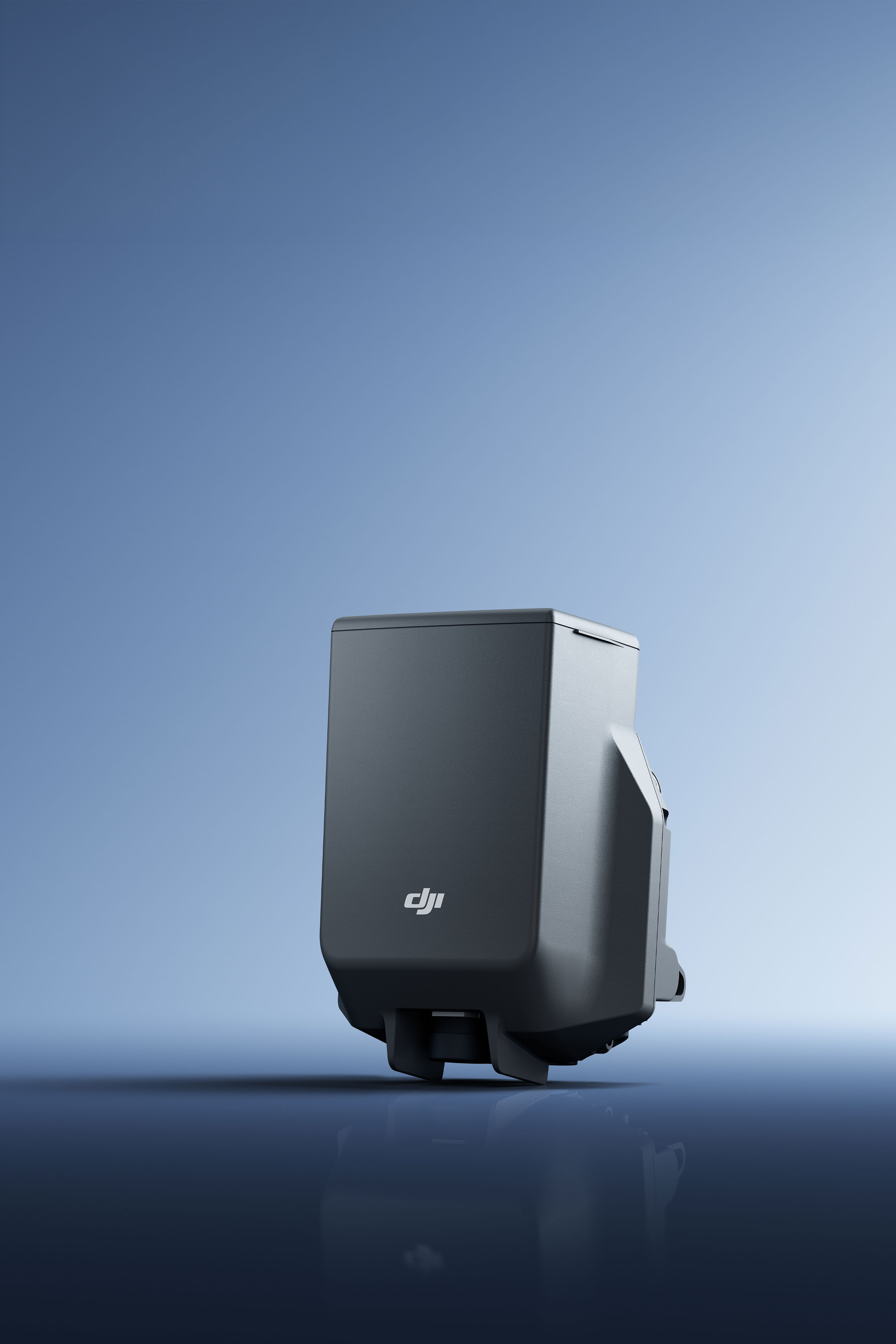

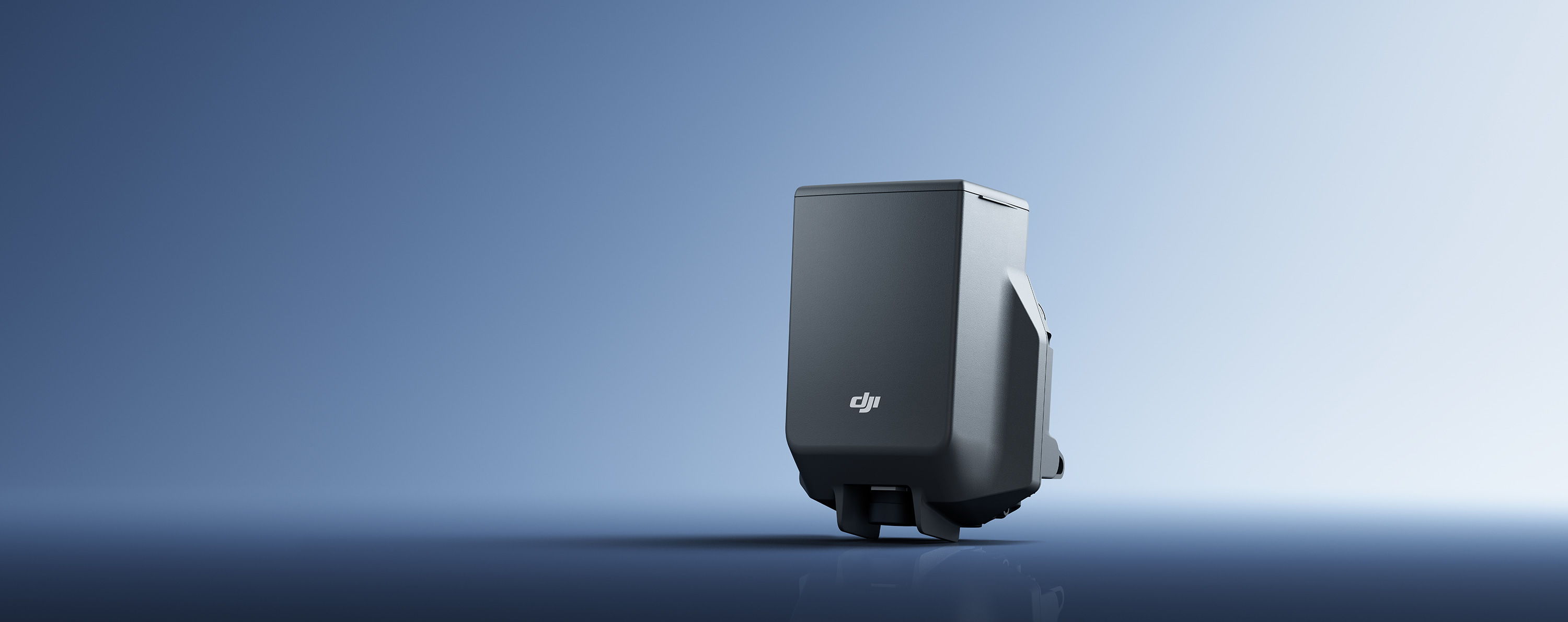

The DJI AP100 Parachute for the DJI Matrice 400 [1] enables compliance for advanced drone operations [2]. Built for high reliability, it features independent power and full-link redundancy, supporting both manual and automatic deployment options. By reacting in under 600 ms [3] and maintaining a controlled descent rate below 5 m/s [4], it delivers critical protection for your aircraft, valuable payloads, and the environment below.
Once deployed, the system emits loud audible alerts and high-intensity flashing lights for approximately 1 hour [6]. This crucial warning urges people on the ground to clear the area immediately, while helping operators quickly locate and recover the equipment.
Automatic Deployment Response Time ≤ 600 ms [3] | Stabilized Descent Speed ≤ 5 m/s [4] at Deployment Altitude ≥ 30 m [7]
Triggers automatically upon detecting abnormal flight attitudes or speed deviations. Where regionally supported, it also activates automatically if the drone breaches a Geocaging [8] perimeter set within DJI Pilot 2.
Manually trigger deployment using the on-screen slider within DJI Pilot 2. In supported regions, remote activation is also available via the Flight Termination System (FTS) page on DJI FlightHub 2 [9], which requires the aircraft's serial number, a verification code, and a 4G network connection enabled by the DJI Cellular Dongle 2 [10].
Weighing around 935 g, the system integrates seamlessly without exceeding the Matrice 400's 15.8kg maximum takeoff weight, keeping the impact on total flight time to a minimal 6 minutes [11].
Its rear-mounted design ensures zero interference with battery swaps or payload configurations. For seamless operations, the Matrice 400 fits directly into its carrying case with the parachute still attached, drastically reducing setup time in the field**.
Matching the Matrice 400's IP55 weather rating [12], the system is engineered to operate reliably in harsh environments, including heavy dust and downpours. It also maintains stable, consistent performance across an extreme temperature range of -20° to 50° C (-4° to 122° F), ensuring dependability in both freezing and scorching climates.
*Product images and videos are for illustrative purposes only; the actual appearance of the product may vary.
**Operating the DJI Matrice 400 with the parachute requires the gimbal safety tether to be securely fastened to the Gimbal Connector. For detailed instructions, please refer to the FAQ page on the official DJI AP100 Parachute website.
To guarantee unhindered parachute deployment and prevent false obstacle alerts, the DJI Matrice 400 automatically disables its downward and backward mmWave radars once the DJI AP100 Parachute is installed. Because this limits the drone's ability to detect small obstacles in those directions, operators must remain highly vigilant and manually avoid obstacles to ensure flight safety. Please note that mmWave radar functionality may be restricted or unavailable in certain countries or regions; consult local laws and regulations for details.
a. The DJI AP100 Parachute has a minimum effective deployment altitude of 30 m, which is the vertical distance required for the system to stabilize the aircraft's descent below 5 m/s. While the parachute will still eject if triggered below this threshold, it may not fully inflate in time to adequately slow the descent. Additionally, the system remains inactive and will not deploy if the aircraft has not taken off.
b. This 30 m metric was measured in a windless environment at 25° C (77° F) at an altitude below 500 m, with the DJI Matrice 400 operating at its maximum takeoff weight of 15.8 kg. This data is for reference only; actual performance may vary depending on environmental conditions, usage, and firmware versions.
c. The system is designed to deploy automatically upon detecting an abnormal aircraft attitude or speed anomaly. However, to mitigate the risk of close-range damage to nearby equipment or property, automatic deployment is disabled under either of the following conditions:
Standard Flight: The aircraft is within a 10m radius of the Home Point, and its relative altitude is within 15 m above or below the Home Point.
Cleaning Mode: With Cleaning Mode active, the aircraft is within a 10m radius of the Home Point, and its relative altitude is within 15 m above the Home Point.
