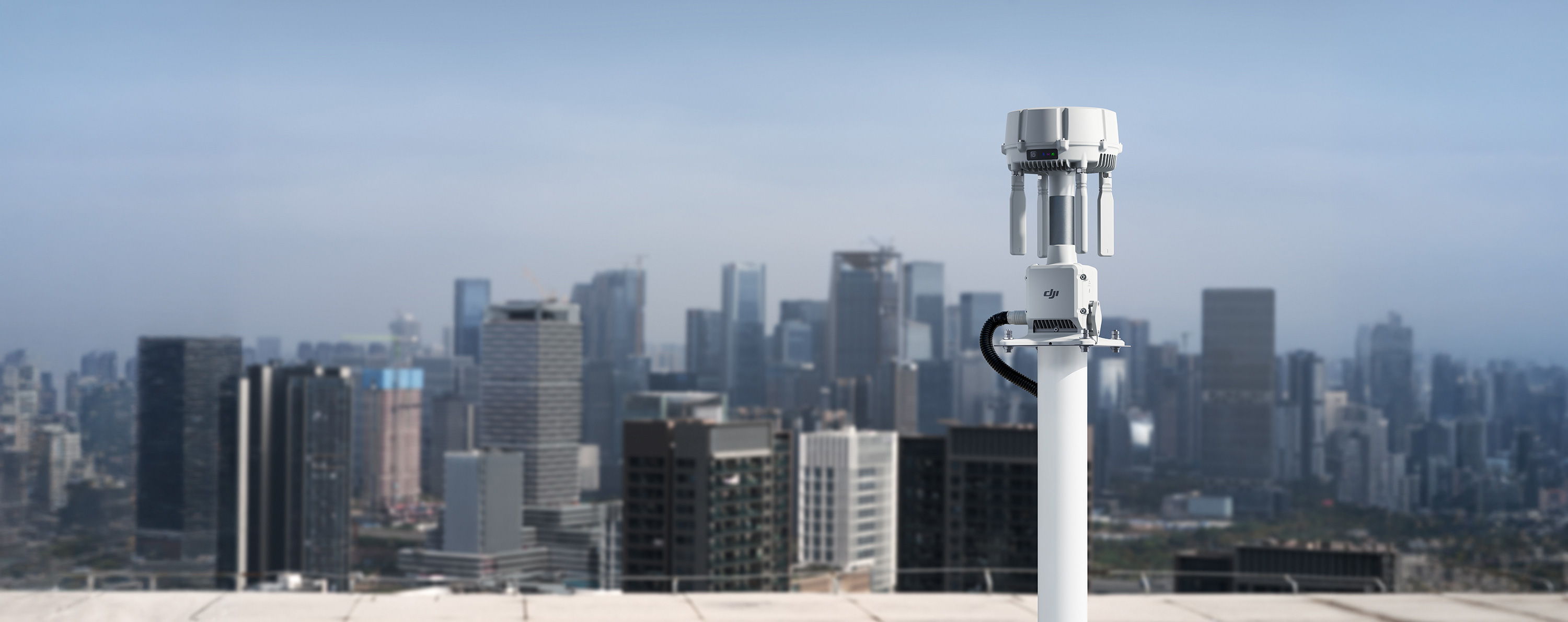

A rooftop view of a city skyline with a DJI O4 Ground Station in the foreground.

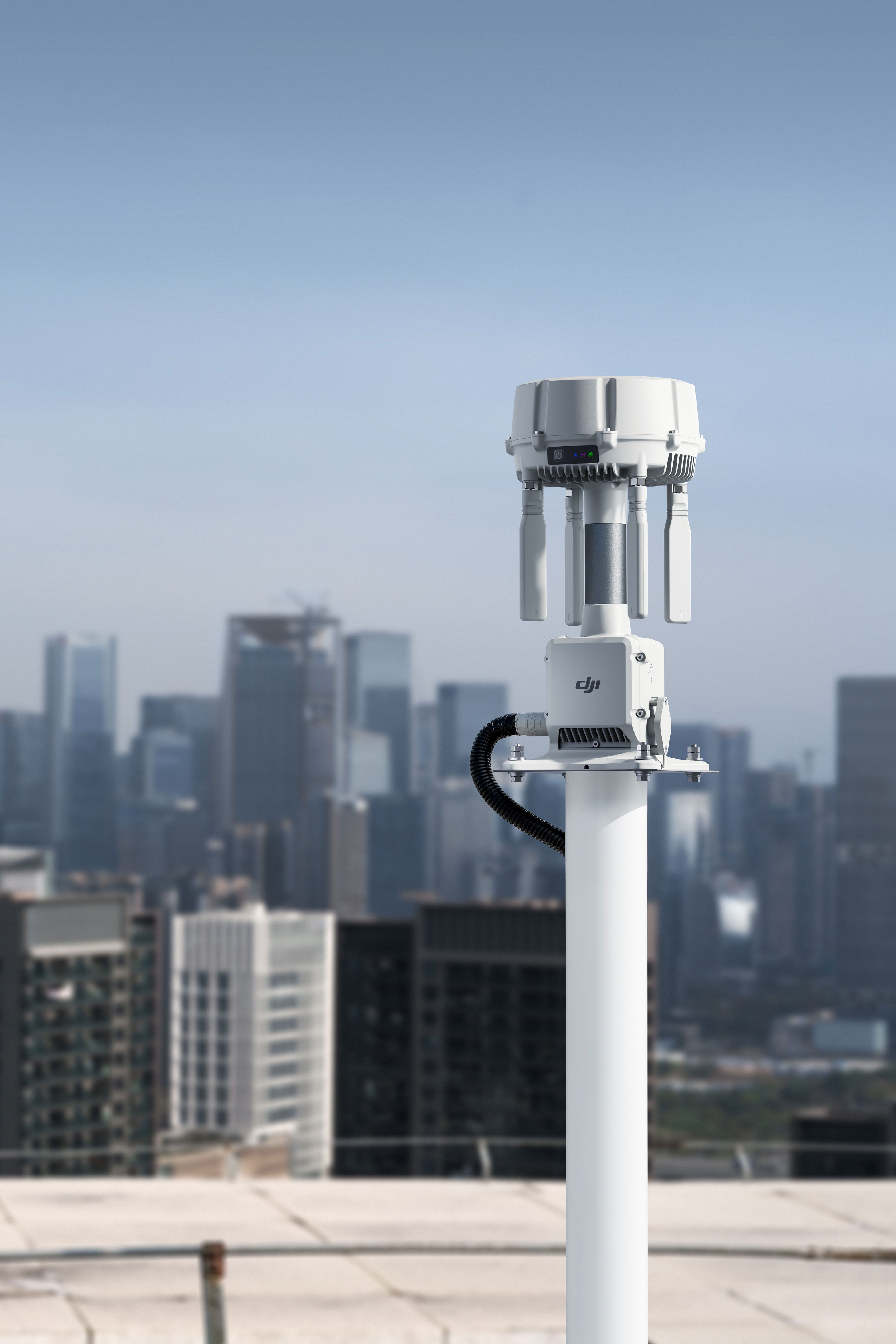

A DJI O4 Ground Station on a rooftop overlooking a city skyline.

DJI O4 Ground Station

Reach Farther, Stay Aware

Overcome signal barriers with the DJI O4 Ground Station. Powered by a 12-antenna array and automatic multi-band switching [1], it delivers ultimate reliability. The new Gateway Mode [2] connects straight to FlightHub 2 [3] to bypass deployment challenges, while Relay Mode [4] extends your offline reach. Best of all, its maintenance-free design effortlessly drives 24/7 autonomous operations.

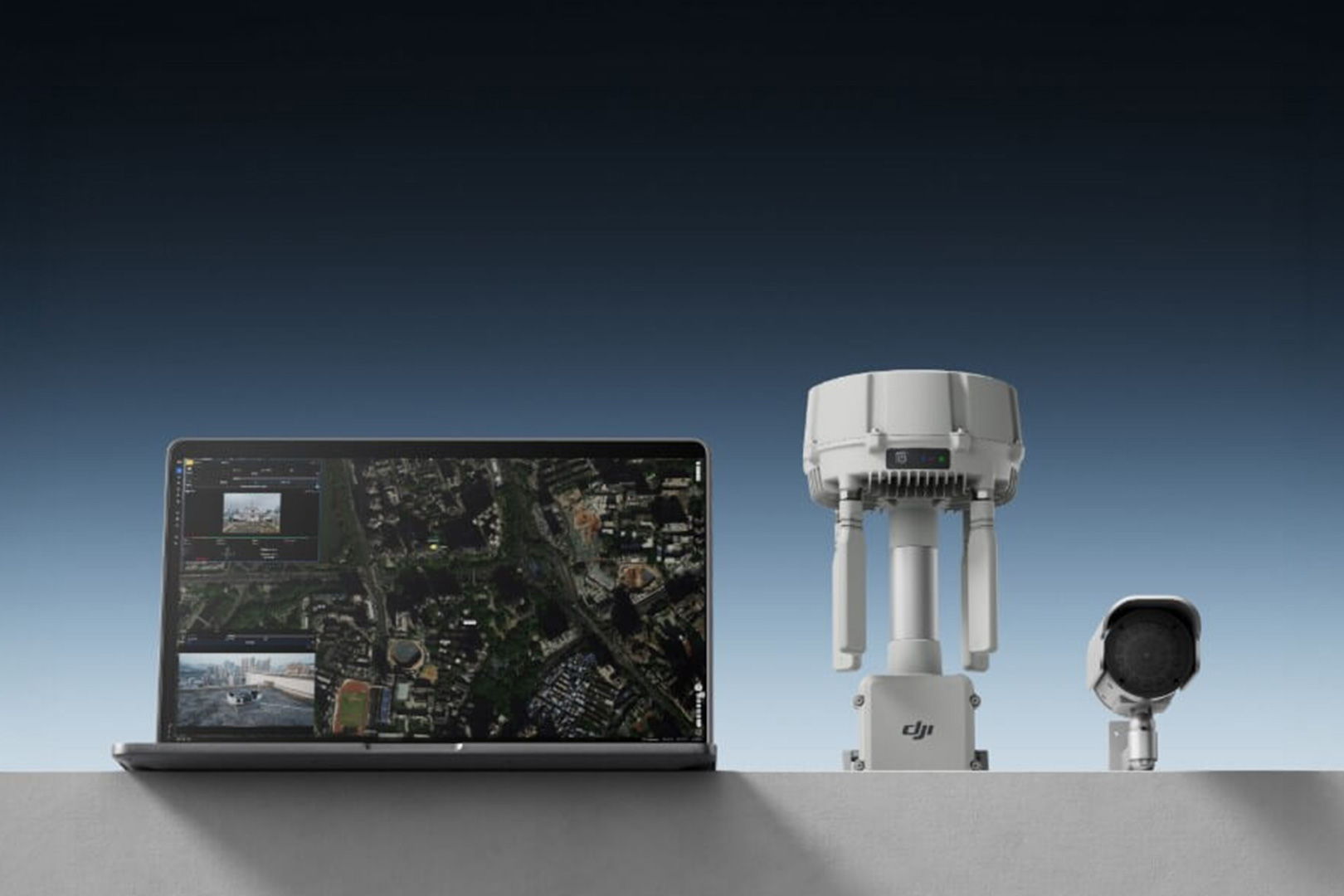

Laptop and drone equipment against a gradient background.

Key Features

  • Next-Generation Hardware, Reliable Transmission
  • Adaptable, Open Ecosystem
  • Rugged Durability, Intelligent Power
  • Expansive Coverage via Gateway Mode [2]
  • Offline Reach with Relay Mode [4]

Premium Build, Reliable Reach

Premium RF Unit

Equipped with a high-output RF unit, the DJI O4 Ground Station maximizes signal penetration to maintain rock-solid connections straight through heavy urban structures. It also features an optimized signal-to-noise ratio (SNR) that boosts receiver sensitivity, effortlessly capturing essential signals even in the most crowded electromagnetic environments.

5-System, 19-Frequency Positioning

Experience pinpoint accuracy with the integrated high-gain RTK module, monitoring 19 frequencies over 5 global satellite systems. Whether you are navigating deep urban canyons or dense forests, it rapidly secures vital satellite connections. The result is continuous, centimeter-level positioning data that keeps your flight operations perfectly on track and incredibly secure.

Omnidirectional Antennas

Equipped with 12 internal and external antennas utilizing dual horizontal and vertical polarization, the O4 Ground Station guarantees powerful, 360-degree coverage. It effortlessly locks onto signals with continuous stability, completely independent of the drone's position in the sky. This ensures a flawless, unbroken communication link that is perfectly tailored for demanding, wide-area missions.

Smart Band Switching [1]

Conquer crowded urban airwaves with the O4 Ground Station. It instantly evades signal interference by auto-switching across sub2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and other frequency bands [1]. The result is a flawless, stutter-free video stream and an impressive operational reach of up to 40 km [5] when paired with the DJI Matrice 400.

Expansive Reach with Gateway Mode [2]

Direct DJI FlightHub 2 Connection

Gateway Mode [2] links your O4 Ground Station directly to DJI FlightHub 2 [3] via Ethernet or the DJI Cellular Dongle 2 [6], unlocking high-speed, low-latency video streams. This seamless integration liberates the station from the physical constraints of the DJI Dock 3, empowering you to push your coverage boundaries up to an impressive 30 km [7].

Visual Coverage Insights

Following a mission, FlightHub 2 processes operational data to compile a Signal Map [8] that visually maps out areas of weak coverage. This intelligence allows operators to optimize future ground station placement and fortify critical connection links, ultimately improving overall flight safety.

Dynamic Flight Control and Manual Overrides

While in Gateway Mode, the FlightHub 2 Virtual Cockpit [8] enables full remote aircraft control. As long as the drone remains within the ground station's coverage zone, pilots can easily override automated flight paths to respond quickly and flexibly to changing, multi-point task requirements.

Relay Mode Signal Extension

Built with the core functionality of the D-RTK 3 Relay Fixed Deployment Version, the O4 Ground Station overcomes extreme signal obstruction in valleys and offline urban zones. Switching to Relay Mode [4] and positioning the station at a high point allows operators to quickly extend the aircraft's video transmission link.

One Station, Continuous Fleet Operations

Any remote controllers or DJI Docks [9] within range can wirelessly scan and link to the O4 Ground Station [10]. This seamless capability facilitates rapid operational turnarounds, allowing a single ground station to service multiple aircraft sequentially and significantly maximizing overall hardware efficiency.

Resilient Design, Optimized Power

Self-Sustaining
Off-Grid Power

Gateway Mode unlocks ultra-smart power management for the O4 Ground Station, automatically slipping into an energy-saving hibernation mode when idle to draw a meager 7 W on standby [14]. When operating far off the grid, the station easily connects to DJI Power solar solutions or third-party solar platforms [15], delivering continuous, self-sustaining power in the most remote areas.

All-Weather
Durability

Built to endure the elements, the O4 Ground Station features an IP67-rated chassis [11] that completely seals out water and dust, while functioning flawlessly in punishing temperatures from -40° to 55° C (-40° to 131° F) [12]. This ultra-durable design makes it the ultimate backbone for continuous, autonomous field operations in any weather.

Lightning Storm
Protection

Shielded by proprietary lightning protection technology and an advanced grounding layout, the station fully meets rigid EN/IEC 61643-21 Category C standards. This advanced engineering delivers ultimate peace of mind, slashing the risk of surge damage when deploying in high-risk, elevated environments like mountain peaks or transmission towers [13].

Zero-Maintenance
Self-Recovery Architecture

Utilizing fanless passive cooling and an automated self-recovery system, the station independently resumes operations following power disruptions or software faults. This zero-maintenance architecture eliminates the requirement for manual, on-site reboots, effectively reducing technical dispatches and lowering overall operational expenses.



Open Platform, Flexible Setup

Panoramic Site Intelligence

Panoramic Site Intelligence

Expand your situational awareness by connecting up to four standard IP cameras directly to the O4 Ground Station. Utilizing ONVIF and GB/T 28181 protocols, the station streams real-time video straight to DJI FlightHub 2 and instantly syncs crucial native alerts like displacement detection. With full remote PTZ control managed through FlightHub 2, operators gain a centralized, all-encompassing view of the entire job site.

ESDK 2.0

ESDK 2.0

Unlock limitless customization with the new MQTT-based ESDK 2.0 and Cloud API, engineered to help developers deploy tailored, industry-specific solutions faster than ever. By seamlessly connecting third-party Remote ID or ADS-B receivers via the MQTT protocol, the station grants you instant, real-time awareness of nearby manned and unmanned aircraft—proactively shielding the airspace around DJI Dock 3.

Supported Products

Gateway Mode:

DJI Dock 3

Relay Mode*:

DJI Dock 3
DJI Matrice 400
DJI Matrice 4E
DJI Matrice 4T
DJI Matrice 4D (DJI RC Plus 2 Enterprise)
DJI Matrice 4TD (DJI RC Plus 2 Enterprise)
DJI FlyCart 100
* This feature requires 5GHz frequency support and is unavailable in restricted regions, such as Japan and Kazakhstan. Please verify local laws and regulations prior to use.

Buy The DJI O4 Ground Station In Canada

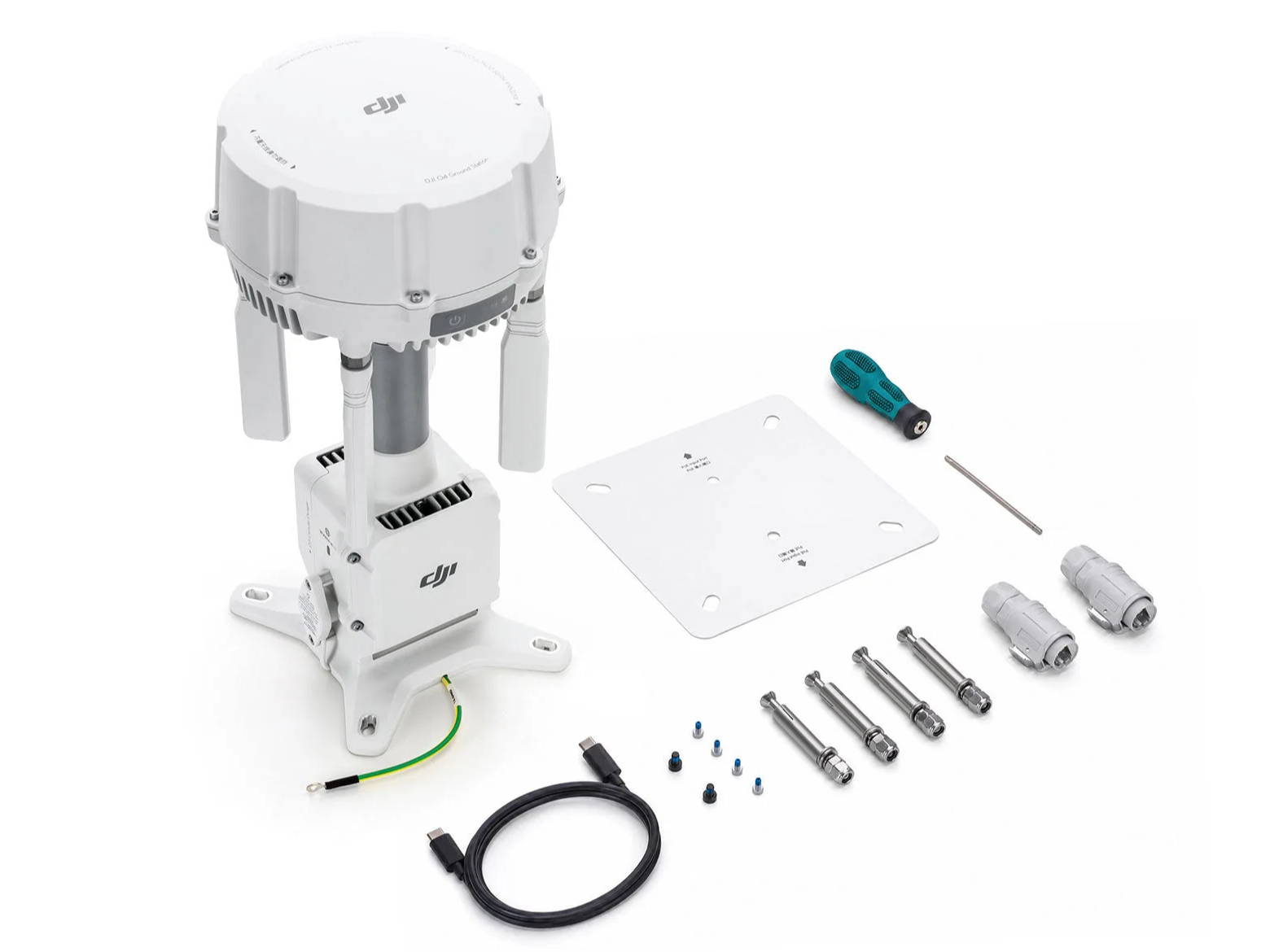

Everything included with the DJI O4 Ground Station against a white background, displayed at a right-facing angle.

Notes

* Relay flights must be conducted in strict accordance with local laws and regulations.

  1. Sub2G band support and multi-band auto-switching require the DJI O4 Ground Station to be paired with the Matrice 400. Regional restrictions apply; check local laws and regulations for availability in your area.
  2. DJI Dock 3 is compatible with Gateway Mode
  3. When operating in Gateway Mode, the DJI O4 Ground Station utilizes either an Ethernet connection or the DJI Cellular Dongle 2 to interface with cloud infrastructure. It supports seamless deployment across the DJI FlightHub 2 public cloud, FlightHub 2 On-Premises, and FlightHub 2 AIO environments, as well as custom third-party software systems integrated via Cloud API or FlightHub Sync.
  4. Relay Mode is compatible across a designated ecosystem including the DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D/4TD (utilizing the DJI RC Plus 2 Enterprise), and FlyCart 100. Operational availability of this feature is contingent upon 5GHz frequency allocation and is restricted in regions lacking this support, such as Japan and Kazakhstan. Please review local laws and regulatory frameworks for regional compliance guidelines.
  5. Data obtained in an open, interference-free outdoor environment. Under IC standards, the 40km transmission range applies solely to the Matrice 400, while other models support a maximum range of 30 km (IC). These figures represent the maximum one-way, non-return communication distance. Please pay close attention to real-time in-app notifications during operations.
  6. Sold separately. Availability of the 4G Enhanced Transmission feature is subject to regional restrictions. Please contact your local authorized dealer for specific availability details.
  7. The DJI O4 Ground Station with Dock 3 offers a larger single-station coverage radius than the D-RTK 3 in Relay Station mode. Tested in an open, interference-free outdoor environment, the 30km range is supported under IC compliance only by the Matrice 4D/4TD (with DJI Dock 3) in Gateway Mode, or the Matrice 4E, Matrice 4T, Matrice 4D/4TD (with Dock 3 or DJI RC Plus 2 Enterprise), and Flycart 100 in Relay Mode. This data shows the maximum distance for one-way, non-return flights. Please closely follow all in-app flight prompts.
  8. Feature only available while DJI O4 Ground Station is in Gateway Mode.
  9. DJI Dock 3, aircraft, and remote controller must be on the latest firmware version, V13.01.00.04 or later, and linked via Remote Access.
  10. Feature only available while DJI O4 Ground Station is in Relay Mode.
  11. Please strictly adhere to the guidelines specified in the IP67 protection rating instructions. Performance was evaluated under controlled laboratory conditions. Note that ingress protection is not permanently guaranteed and may diminish over time due to natural product wear and tear.
  12. In environments ranging from -40° to -20°C (-40° to -4°F), the station must be powered by a PoE++ supply of at least 60 W.
  13. The RJ45 interface features a surge protection capacity of 1.5kA (8/20μs waveform), complying with the EN/IEC 61643-21 Category C protection standard. Because surge mitigation performance relies heavily on the capacity and integrity of the grounding system, proper grounding must be established during installation to effectively minimize the risk of electrical damage.
  14. The 7 W specification applies solely to the DJI O4 Ground Station. When using a PoE++ power source, the actual total power draw will be higher because it includes the power consumed by the power supply itself.
  15. Both DJI Power solar solutions and third-party photovoltaic systems require a separate purchase.
